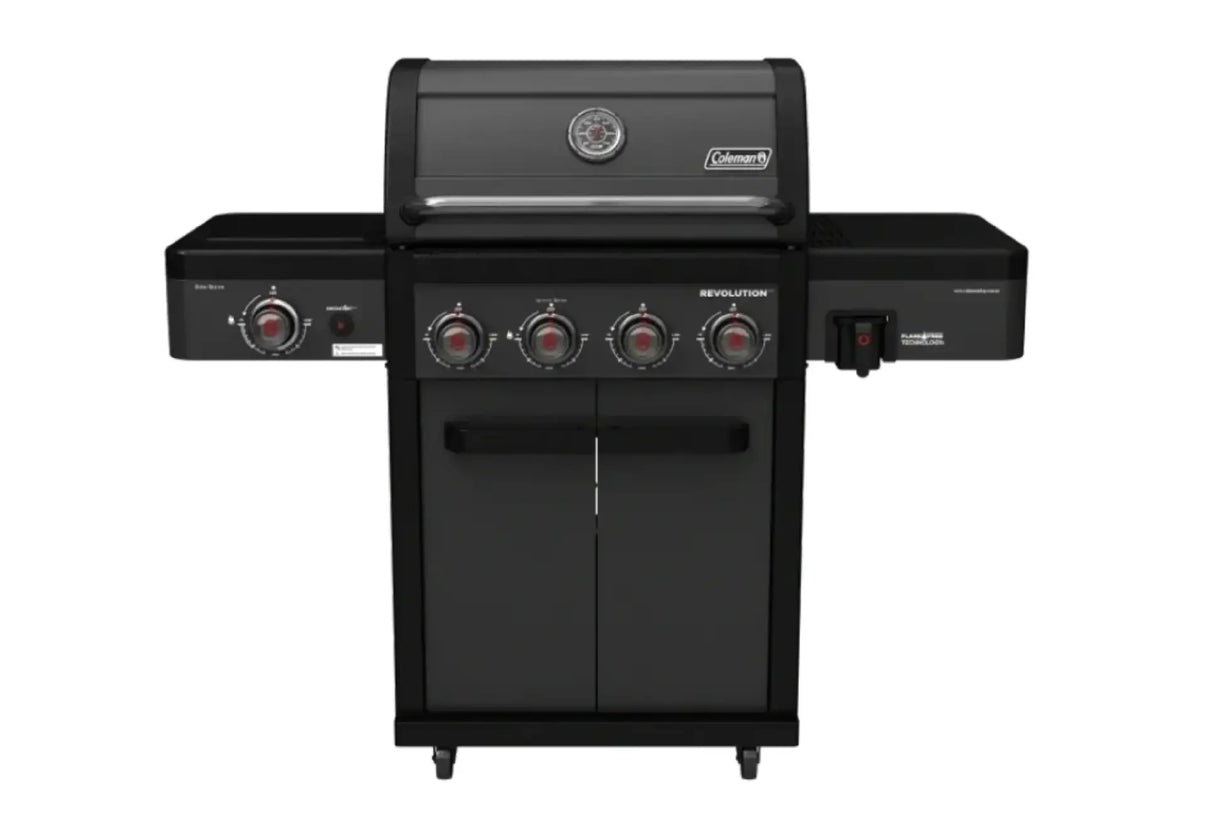

Coleman Revolution 4-Burner BBQ with Side Burner (Black Matte)

Four-burner gas BBQ with side burner and Flare-Free Technology. 3,097 cm² main cooking surface plus 924 cm² warming rack. 55.5 MJ total heat output. 304 stainless steel burners. One-third double-sided hotplate, two-thirds grill grate. Weather-resistant Instastart ignition. Double-layer hood. Cabinet storage. Compatible with Coleman Outdoor Modular System. Black matte finish. 5-year warranty. On display at our Wetherill Park showroom.

The Coleman Revolution 4-Burner BBQ with Side Burner is built around Flare-Free Technology, which uses double-stacked cooking grates to capture and redirect 75% more grease away from the flames. This design eliminates the flare-ups that char food and create uneven cooking. Grease drains forward through a dedicated channel to a removable front-access cup, keeping the burner box cleaner and reducing smoke.

The BBQ provides 3,097 cm² of main cooking surface, which accommodates large cuts of meat, multiple steaks, or several racks of sausages simultaneously. The warming rack adds another 924 cm² for keeping food hot or slow-cooking at lower temperatures. The main cooking surface includes a one-third double-sided hotplate (smooth on one side, ridged on the other) and a two-thirds porcelain-coated cast iron grill grate. This split configuration lets you cook eggs or pancakes on the hotplate while grilling meat on the grate.

Four 304 stainless steel burners deliver 10.3 MJ each for a combined 41.2 MJ on the main cooking surface. The side burner adds 14.3 MJ, bringing total heat output to 55.5 MJ. The side burner is positioned alongside the main cooking area and is designed for boiling water, heating sauces, or cooking side dishes while the main surface handles the protein.

The Coleman Revolution 4-Burner is compatible with the Coleman Outdoor Modular System, which allows you to attach storage modules, fridge modules, and sink modules to either side of the BBQ. If you want to start with a standalone BBQ and expand into a full outdoor kitchen later, this compatibility gives you that option.

As an authorised Coleman stockist, we have the Coleman Revolution 4-Burner BBQ with Side Burner on display at our Wetherill Park showroom. Come in and we will show you how Flare-Free Technology works, demonstrate the modular system connections, and discuss setup options for your outdoor space.

What You Get

• 1 x Coleman Revolution 4-Burner BBQ with Side Burner (Black Matte)
• One-third double-sided hotplate (smooth and ridged)
• Two-thirds porcelain-coated cast iron grill grate
• 924 cm² warming rack
• 4 x 304 stainless steel burners (10.3 MJ each)
• 1 x side burner (14.3 MJ)
• Cabinet storage with doors
• Weather-resistant Instastart ignition
• Removable front-access grease cup
• 5-year limited warranty

Key Features

Flare-Free Technology eliminates flare-ups The Coleman Revolution range is built around Flare-Free Technology, which uses double-stacked cooking grates to manage grease and fat during cooking. The two-layer grate system captures dripping grease before it reaches the burners, then channels it forward through a dedicated grease channel to a removable front-access cup.

This design removes 75% more grease than standard single-layer grate systems, which eliminates the flare-ups that char food and create hot spots. Food cooks more evenly because the flame is not being interrupted by burning grease. The burner box stays cleaner because grease is not pooling on the flame tamers or burner tubes. Smoke is reduced because there is less grease combusting over open flames.

The double-stacked grates also provide better heat retention than single-layer systems. Heat is trapped between the two layers, which helps maintain consistent cooking temperatures when you open the hood.

3,097 cm² main cooking surface plus 924 cm² warming rack The main cooking surface measures 3,097 cm² (D 46.5 x W 66.6 cm), which is large enough to cook for 6-8 people simultaneously. You can fit multiple large steaks, several racks of sausages, or a combination of proteins and vegetables across the cooking area without crowding.

The warming rack adds 924 cm² (D 14.7 x W 62.8 cm) of secondary cooking space. Use it to keep cooked food warm while you finish the rest of the meal, or for slow-cooking items that benefit from indirect heat at lower temperatures.

One-third double-sided hotplate, two-thirds grill grate The main cooking surface is split into two zones. One-third of the surface is a double-sided hotplate made from cast iron. One side is smooth and flat for cooking eggs, pancakes, or delicate items. The other side is ridged for grilling with sear marks. You can flip the hotplate depending on what you are cooking.

The remaining two-thirds of the cooking surface is a porcelain-coated cast iron grill grate. Porcelain coating improves heat retention, prevents rust, and makes the grate easier to clean than bare cast iron.

This split configuration gives you more cooking options than an all-grate or all-hotplate surface. Cook bacon and eggs on the hotplate while grilling sausages on the grate. Sear steaks on the ridged hotplate and grill vegetables on the grate. The hotplate is removable, so you can replace it with additional grill grate if you prefer an all-grate setup.

55.5 MJ total heat output across 4 burners plus side burner Four 304 stainless steel burners sit below the main cooking surface. Each burner produces 10.3 MJ, for a combined 41.2 MJ across the main cooking area. Stainless steel burners resist corrosion better than mild steel or cast iron burners, which extends their lifespan in outdoor conditions.

The side burner produces 14.3 MJ and is positioned on the left side shelf. Use it for boiling water, heating sauces, sautéing vegetables, or cooking side dishes while the main surface handles the protein. Total heat output across all five burners is 55.5 MJ.

Each burner has independent control, allowing you to create different heat zones across the cooking surface. Run all four burners at high heat for fast searing, or run two burners on one side for direct grilling and leave the other two burners off for indirect cooking.

Weather-resistant Instastart ignition The Instastart ignition system lights the burners reliably in outdoor conditions, including wind, humidity, and cold temperatures. Press the ignition button and the burner lights without requiring matches, lighters, or repeated attempts. The ignition is weatherproofed to function in harsh environments.

Double-layer hood for heat retention The hood is constructed with two layers of material separated by an air gap. This double-skin design insulates the cooking chamber, which improves heat retention when the hood is closed. Better heat retention means the BBQ maintains consistent temperatures during roasting, baking, or smoking, and recovers temperature faster after you open the hood.

The double-layer construction also keeps the exterior hood surface cooler to the touch than single-layer hoods, reducing the risk of burns if you accidentally contact the hood during cooking.

Cabinet storage for gas bottle and utensils The cabinet below the BBQ provides enclosed storage for your LPG gas bottle, utensils, and BBQ accessories. The cabinet has doors that keep contents protected from weather and dust. The gas bottle sits inside the cabinet and connects to the BBQ via a standard regulator and hose.

Compatible with Coleman Outdoor Modular System The Coleman Revolution 4-Burner is designed to connect to the Coleman Outdoor Modular System. Storage modules, fridge modules, and sink modules can attach to either side of the BBQ, replacing the folding side shelves. Multiple modules can be connected in sequence to create a continuous outdoor kitchen layout.

If you want to add storage, refrigeration, or running water to your BBQ setup, the modular compatibility gives you that option without replacing the entire BBQ. Start with the standalone BBQ and add modules incrementally as your budget or needs allow.

Black matte finish The Black Matte finish is a high-quality matte sandy finish with a touch of shiny black and a slightly dimpled surface texture. The finish creates a modern blackout appearance that resists fingerprints and is easier to maintain than gloss finishes. The matte surface is durable and weather-resistant.

5-year limited warranty The Coleman Revolution 4-Burner BBQ with Side Burner is backed by a 5-year limited warranty. Registration is required at the time of purchase to activate the warranty.

Specifications

• Main Cooking Surface Area - 3,097 cm² (D 46.5 x W 66.6 cm)
• Warming Rack Area - 924 cm² (D 14.7 x W 62.8 cm)
• Main Burners - 4 x 304 stainless steel (10.3 MJ each, 41.2 MJ total)
• Side Burner - 1 x side burner (14.3 MJ)
• Total Heat Output - 55.5 MJ
• Cooking Surface Configuration - 1/3 double-sided hotplate + 2/3 grill grate
• Hotplate Material - Cast iron (smooth one side, ridged other side)
• Grill Grate Material - Cast iron with porcelain coating
• Ignition - Weather-resistant Instastart
• Hood - Double-layer (insulated)
• Storage - Cabinet with doors (gas bottle and utensils)
• Finish - Black matte
• Modular Compatibility - Coleman Outdoor Modular System
• Assembled Dimensions - W 143.4 x D 60.7 x H 121.8 cm
• Assembled Weight - 73.3 kg
• Package Dimensions - L 90.5 x W 76.5 x H 62 cm
• Package Weight - 86.6 kg
• Fuel Type - LPG (gas bottle not included)
• Warranty - 5-year limited warranty (registration required)

Double-Sided Hotplate vs Grill Grate

The Coleman Revolution 4-Burner includes both a hotplate and a grill grate across the main cooking surface, giving you flexibility for different cooking methods.

Hotplate (one-third of cooking surface): The hotplate is made from cast iron and is double-sided. One side is smooth and flat for cooking eggs, pancakes, bacon, or delicate items that would fall through a grill grate. The other side is ridged for grilling with sear marks. You can flip the hotplate depending on what you are cooking.

Cast iron distributes heat evenly and retains heat well, which makes it ideal for searing. The hotplate sits directly over one burner, so you can control its temperature independently from the grill grate.

Grill Grate (two-thirds of cooking surface): The grill grate is made from cast iron coated with porcelain. Porcelain coating prevents rust, improves heat retention, and makes the grate easier to clean than bare cast iron. The grate has wide bars that create sear marks on meat and allow fat to drain through to the Flare-Free system below.

Why this split configuration matters: The hotplate and grill grate give you more cooking options than an all-grate or all-hotplate surface. Cook a full breakfast with eggs and bacon on the hotplate while grilling sausages on the grate. Sear steaks on the ridged hotplate and grill vegetables on the grate. Use the smooth hotplate for stir-fries or fajitas while grilling meat on the grate.

If you prefer an all-grate setup, the hotplate is removable and can be replaced with an additional grill grate section (sold separately).

Assembly and Setup
The Coleman Revolution 4-Burner BBQ with Side Burner requires assembly. The manufacturer provides assembly guides at colemanbbqs.com.au/module-assembly-guides.
Assembly involves attaching the hood, installing the cabinet doors, connecting the burners, and mounting the side shelves and side burner. The process is straightforward for anyone comfortable with basic tools and following instructions, but the 73.3 kg assembled weight means you will need assistance to move and position the BBQ after assembly.
After assembly, you will need to connect an LPG gas bottle (not included) to the BBQ using a standard regulator and hose. The gas bottle sits inside the cabinet storage compartment.

Frequently Asked Questions

What size is the cooking surface?

The main cooking surface is 3,097 cm² (D 46.5 x W 66.6 cm). The warming rack adds 924 cm² (D 14.7 x W 62.8 cm). Total cooking area is 4,021 cm².

How many people can this BBQ cook for?

The 3,097 cm² main cooking surface comfortably cooks for 6-8 people simultaneously.

What is Flare-Free Technology?

Flare-Free Technology uses double-stacked cooking grates to capture and redirect grease away from the burners. This eliminates flare-ups, reduces smoke, and creates more even cooking. The system removes 75% more grease than standard single-grate BBQs.

Can I remove the hotplate and use all grill grates?

Yes. The hotplate is removable. You can replace it with an additional grill grate section if you prefer an all-grate cooking surface. Replacement grate sections are sold separately.

Can I flip the hotplate?

Yes. The hotplate is double-sided. One side is smooth and flat for cooking eggs or delicate items. The other side is ridged for grilling with sear marks. Flip the hotplate depending on what you are cooking.

Does this BBQ come with a gas bottle?

No. The gas bottle is not included. You will need to purchase a standard LPG gas bottle separately. The cabinet storage compartment is designed to hold the gas bottle.

Can I convert this BBQ to natural gas?

Yes. Coleman offers a natural gas conversion kit (sold separately, part number 085-2261) that allows you to convert the BBQ from LPG to natural gas. The conversion must be performed by a licensed gas fitter.

What modules can I attach to this BBQ?

The Coleman Revolution 4-Burner is compatible with the Coleman Outdoor Modular System. You can attach storage modules (with or without drawer), fridge modules, sink modules, and corner modules to either side of the BBQ. Modules replace the folding side shelves.

Does this BBQ come with a cover?

No. A cover is not included. We recommend the Coleman Premium BBQ Cover (Large) for this BBQ model.

What is the difference between Black Matte and Black Gloss finishes?

Black Matte is a high-quality matte sandy finish with a touch of shiny black and a slightly dimpled surface texture. It creates a modern blackout appearance and resists fingerprints. Black Gloss is a shiny, polished finish with a subtle grey dimpled texture. Both finishes are durable and weather-resistant. The choice is purely aesthetic.

Is this BBQ on display at your showroom?

Yes. The Coleman Revolution 4-Burner BBQ with Side Burner (Black Matte) is on display at our Wetherill Park showroom. We are open Monday to Friday 10am to 5pm and Saturday 9am to 2pm.
