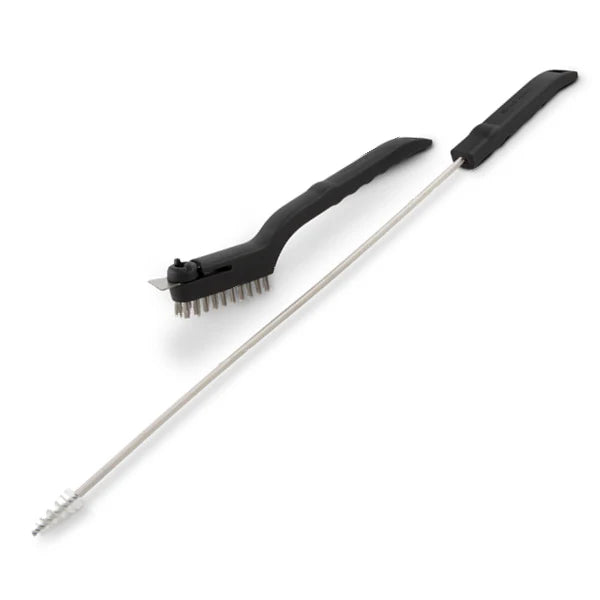

Broil King Gas Barbecue Burner Maintenance Set

Two-piece maintenance kit for cleaning gas grill burners and venturi tubes. Long neck venturi brush reaches deep inside burner tubes removing insect nests and debris that restrict gas flow. Fine detail brush features stainless steel bristles for scrubbing burner exteriors, heat plates, and collector boxes, plus integrated needle tip for clearing clogged burner ports. Maintains even heat distribution and consistent cooking performance. Compatible with all Broil King gas grills including Baron, Regal, Imperial, Sovereign, and Signet series. Available at our Wetherill Park showroom from an Authorised Broil King Stockist in Australia.

The Broil King Gas Barbecue Burner Maintenance Set solves the most common cause of poor gas grill performance: blocked burner tubes and venturi passages. Spiders, wasps, and other insects build nests inside burner tubes during periods of non-use, restricting gas flow and creating uneven flames. These blockages prevent proper burner ignition, cause yellow flames instead of blue, and create dangerous flashback conditions where gas ignites at the control panel rather than at the burner ports.

The venturi brush design specifically addresses tube-in-tube burner construction used across Broil King grill models. The long flexible neck reaches from burner opening through entire tube length, dislodging nests, debris, and carbon buildup that hand cleaning cannot reach. Regular venturi cleaning prevents the gas flow restrictions that cause weak flames, failed ignitions, and uneven cooking temperatures.

The fine detail brush handles external burner maintenance often overlooked during routine cleaning. Stainless steel bristles scrub grease, carbon deposits, and food residue from burner surfaces, heat plates, and collector boxes. The integrated needle tip clears individual burner ports that become clogged with grease and carbon, ensuring each port produces proper flame height and pattern. Clogged ports create dead zones on cooking grids where food cooks unevenly or remains raw.

We stock the Broil King Gas Barbecue Burner Maintenance Set at our Wetherill Park showroom. As an Authorised Broil King Stockist in Australia, we carry Broil King Baron, Regal, Imperial, Sovereign, and Signet gas grills plus complete accessory ranges. Our seven years of BBQ experience includes understanding proper gas grill maintenance procedures.

Key Features

Long Neck Venturi Brush

The flexible venturi brush cleans inside burner tubes and venturi passages where insect nests form during storage. The long neck design reaches through entire tube length from burner opening to venturi inlet, dislodging nests and debris that restrict gas flow. The flexible construction bends around internal burner components without damaging tube walls or air shutters.

Venturi tubes connect burners to gas valves and mix air with gas for proper combustion. When insects nest inside these tubes, they block air intake creating fuel-rich flames that burn yellow instead of blue, produce excessive carbon buildup, and may fail to ignite properly. The venturi brush removes these obstructions restoring proper air-to-gas ratio and clean blue flames.

The brush design specifically suits Broil King's tube-in-tube burner construction where inner flame tubes sit inside outer venturi tubes. The narrow profile navigates this dual-tube design without catching on internal components or air shutter mechanisms.

Regular venturi cleaning prevents the dangerous flashback condition where blocked tubes cause gas to ignite at the control panel rather than at burner ports. Flashback fires damage control knobs, ignition systems, and surrounding cabinet components while creating safety hazards.

Fine Detail Brush with Stainless Steel Bristles

The detail brush features firm stainless steel bristles for scrubbing burner exteriors, heat plates, and collector boxes. The bristle stiffness removes baked-on grease, carbon deposits, and food residue that accumulate during cooking. These deposits insulate burner surfaces reducing heat transfer efficiency and creating hot spots where food burns.

The brush size and shape access tight spaces between burners, around ignition electrodes, and inside collector boxes where grease accumulates. Standard grill brushes cannot reach these confined areas, leaving deposits that eventually block gas ports or create grease fires.

The stainless steel bristles withstand repeated use without bending or losing stiffness. The material resists corrosion from exposure to grease, cleaning chemicals, and moisture, maintaining cleaning effectiveness through multiple maintenance sessions.

The detail brush complements the venturi brush by addressing external cleaning while the venturi brush handles internal passages. Together they provide complete burner maintenance covering both gas flow passages and heat transfer surfaces.
Integrated Needle Tip for Port Cleaning

The detail brush includes integrated needle tip for clearing individual clogged burner ports. Each burner contains dozens of small ports where gas exits and ignites. These ports gradually clog with grease, carbon, and food debris reducing flame height and creating gaps in flame pattern. Clogged ports prevent proper heat distribution across cooking grids.

The needle tip diameter matches standard burner port sizing, penetrating clogs without enlarging port openings or damaging port edges. Enlarged ports alter gas flow rates changing flame characteristics and cooking performance.

The tip particularly benefits rotisserie burner maintenance where rear-mounted infrared burners use smaller, more numerous ports than main burners. These smaller ports clog faster requiring more frequent cleaning to maintain even heat output.

Port cleaning also addresses the common problem of flame pattern irregularities where some burner sections produce strong flames while others remain unlit or produce weak flames. This unevenness creates cooking grid hot spots and cold zones preventing consistent results.

Universal Broil King Compatibility

The maintenance set suits all Broil King gas grill models including Baron, Regal, Imperial, Sovereign, and Signet series. The venturi brush length and flexibility accommodate different burner lengths across model ranges from compact two-burner grills to large six-burner units.

The universal compatibility eliminates purchasing multiple cleaning tool sets for different grill models. One maintenance set serves multiple Broil King grills if you own several units or upgrade models over time.

The tool design also works with most other gas grill brands using tube-style burners and venturi systems. While designed for Broil King grills, the brushes function effectively on comparable burner designs from other manufacturers.

Specifications

• Pieces - 2-piece set
• Components - Long neck venturi brush, fine detail brush
• Bristle Material - Stainless steel
• Features - Integrated needle tip on detail brush
• Compatibility - All Broil King gas grills
• Design - Flexible venturi brush, firm detail bristles

What's Included

• 1 x Long Neck Venturi Brush

• 1 x Fine Detail Brush with Needle Tip

How to Use

Venturi Tube Cleaning

Turn off gas supply and ensure grill is completely cool before starting maintenance. Remove cooking grids, heat plates, and burners according to owner's manual instructions. Burner removal procedures vary by model but typically require disconnecting ignition wires and lifting burners from mounting brackets.

Insert venturi brush into burner tube opening at the front where burner connects to valve. Push brush through entire tube length using gentle back-and-forth motion to dislodge debris. Nests and blockages may require multiple passes to remove completely. Withdraw brush and inspect removed material for insect nests, spider webs, and carbon buildup.

Clean venturi passages by inserting brush into venturi inlet at rear of burner assembly. The venturi connects burner to gas valve and contains air shutter controlling air-to-gas mixture. Push brush through venturi tube removing any blockages. Adjust air shutter position after cleaning if flames burn yellow or produce excessive smoke.

Inspect burner tubes and venturi passages for cracks, holes, or deterioration after cleaning. Damaged tubes require replacement as cracks allow gas to escape outside burner creating dangerous conditions. Replace burners showing significant corrosion or physical damage.

Burner Port Cleaning

Use the detail brush needle tip to clear individual clogged burner ports. Hold burner firmly and insert needle into each port using gentle pressure. Rotate needle to break up carbon deposits and grease clogs. Avoid forcing needle as excessive pressure may enlarge port openings altering flame characteristics.

Work systematically along entire burner length checking each port for blockages. Clogged ports appear darker than clean ports and may show carbon buildup around opening. Clean ports should show clear passage through to burner interior.
Test port cleaning effectiveness by reinstalling burner and observing flame pattern.

Properly cleaned burners produce even blue flames approximately 25mm high across all ports. Gaps in flame pattern or yellow flames indicate remaining blockages requiring additional cleaning.

Pay particular attention to ports near ignition electrodes and crossover passages where carbon buildup concentrates. These areas experience higher heat exposure accelerating carbon deposit formation.

External Burner Maintenance

Use the detail brush stainless steel bristles to scrub burner exteriors, heat plates, and collector boxes. Remove heavy grease deposits and carbon buildup that accumulate during normal cooking. These deposits reduce heat transfer efficiency and create potential grease fire hazards.

Scrub heat plates thoroughly as these components sit directly above burners absorbing and radiating heat to cooking grids. Carbon buildup on heat plates insulates surfaces reducing heat transfer and creating uneven cooking temperatures. Clean heat plates also last longer as deposits accelerate corrosion.

Clean collector boxes and grease trays removing accumulated fat and food debris. Full collector boxes overflow during cooking creating grease fires and heavy smoke. Regular cleaning prevents overflow conditions and reduces grease fire risk.

Brush ignition components carefully avoiding damage to ceramic insulators and electrode tips. Clean ignition electrodes improve spark reliability and starting consistency. Grease deposits on electrodes prevent spark formation causing ignition failures.
Maintenance Frequency

Clean venturi tubes and burners at start of grilling season after extended storage periods. Insects nest inside tubes during winter months when grills sit unused. Pre-season cleaning prevents ignition problems and uneven flames during first uses.

Inspect and clean burner ports monthly during active grilling season. Regular port cleaning maintains consistent flame patterns and prevents gradual performance degradation. Monthly cleaning takes less time than correcting severe clogging from seasonal neglect.

Perform complete burner maintenance including external cleaning every three months or after 50 cooking sessions. Regular external cleaning prevents carbon buildup that eventually damages burner components and reduces grill lifespan.

Clean immediately if noticing yellow flames, uneven heat, ignition failures, or excessive smoke. These symptoms indicate burner blockages or carbon buildup requiring immediate attention. Delaying cleaning allows problems to worsen creating safety hazards.

Frequently Asked Questions

How often should I clean my gas grill burners?

Clean venturi tubes at start of grilling season and inspect burner ports monthly during regular use. Complete external burner cleaning every three months maintains optimal performance.

Why do insects nest inside burner tubes?

Spiders and wasps seek protected spaces for nesting. Burner tubes provide shelter and residual food odours attract insects. Nests block gas flow creating dangerous conditions.

What causes yellow flames instead of blue?

Yellow flames indicate improper air-to-gas mixture usually from blocked venturi tubes or clogged air shutters. Clean venturi passages and adjust air shutters until flames burn blue.

Can I use this maintenance set on other grill brands?

Yes. The brushes work on most gas grills using tube-style burners and venturi systems, though designed specifically for Broil King models.

What is flashback and why is it dangerous?

Flashback occurs when blocked burner tubes cause gas to ignite at control panel rather than burner ports. This damages control components and creates fire hazards. Regular venturi cleaning prevents flashback.

How do I know if burner ports are clogged?

Clogged ports appear darker than clean ports and produce gaps in flame pattern. Yellow flames or uneven cooking temperatures also indicate port blockages.

Should I clean burners if grill still lights properly?

Yes. Partial blockages reduce efficiency and create uneven heat before causing ignition failures. Regular cleaning maintains performance rather than waiting for problems.

Why buy from an Authorised Broil King Stockist?

Authorised Stockists receive genuine Broil King products with proper quality control. We stock complete Broil King grill ranges and accessories providing expert maintenance support.

Can I see the Broil King Gas Barbecue Burner Maintenance Set in person before buying?

Yes. It's available to view and purchase at our BBQ showroom in Wetherill Park.
